American Standard Stainless Steel Wire Rope Thimble
Tel:+86-512-58985789
- Description
- Specification
- Applications
The American standard stainless steel wire rope thimble comes with a highly polished surface and longer service life.It can also better protect the wore rope against abrasion and deformation .
Generally, the rope thimble comes in a size range of 1/8"-1-1/8". It uses PP bags or carton as the inner package, and pallets as the outer package. We can tailor-made the American standard stainless steel wire rope thimble with your desired specifications and marks.
Generally, the rope thimble comes in a size range of 1/8"-1-1/8". It uses PP bags or carton as the inner package, and pallets as the outer package. We can tailor-made the American standard stainless steel wire rope thimble with your desired specifications and marks.
|

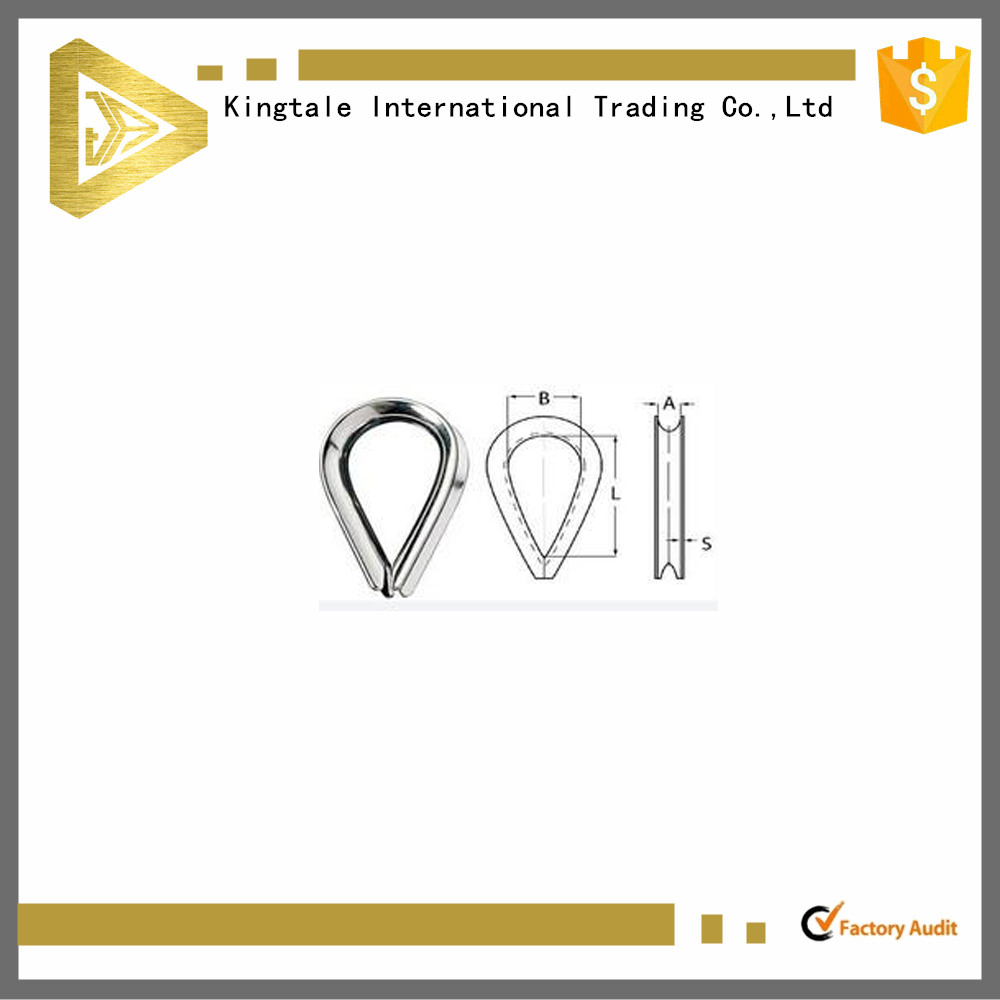

Size (Inch) |
A | B | L | S |
Weight Kg/100pcs |
||
|---|---|---|---|---|---|---|---|
| (Inch) | (Inch) | (Inch) | (inch) | ||||
| 1/8" | 0.16" | 0.69" | 1.31" | 0.05" | 0.7 | ||
| 3/16" | 0.22" | 0.69" | 1.31" | 0.05" | 0.8 | ||
| 1/4" | 0.28" | 0.69" | 1.31" | 0.05" | 0.9 | ||
| 5/16" | 0.34" | 0.81" | 1.50" | 0.05" | 1.2 | ||
| 3/8" | 0.41" | 0.94" | 1.63" | 0.06" | 1.5 | ||
| 1/2" | 0.53" | 1.13" | 1.88" | 0.08" | 7 | ||
| 5/8" | 0.66" | 1.38" | 2.25" | 0.13" | 20 | ||
| 3/4" | 0.78" | 1.63" | 2.50" | 0.14" | 25 | ||
| 7/8" | 0.94" | 1.88" | 3.50" | 0.16" | 47 | ||
| 1“ | 1.06" | 2.50" | 4.25" | 0.16" | 57 | ||
| 1-1/8“ | 1.31" | 2.75" | 4.50" | 0.22' | 109 | ||
